eMG13
eMG13
eMG13
| Item | Description |
| 1.1 | Seal face |
| 1.2 | Bellows |
| 1.3 | Set of springs |
| 1.4 | PEEK-PTFE disk |
| 2 | Seat (G6) |
| 3 | O-Ring or cup rubber |
eMG13

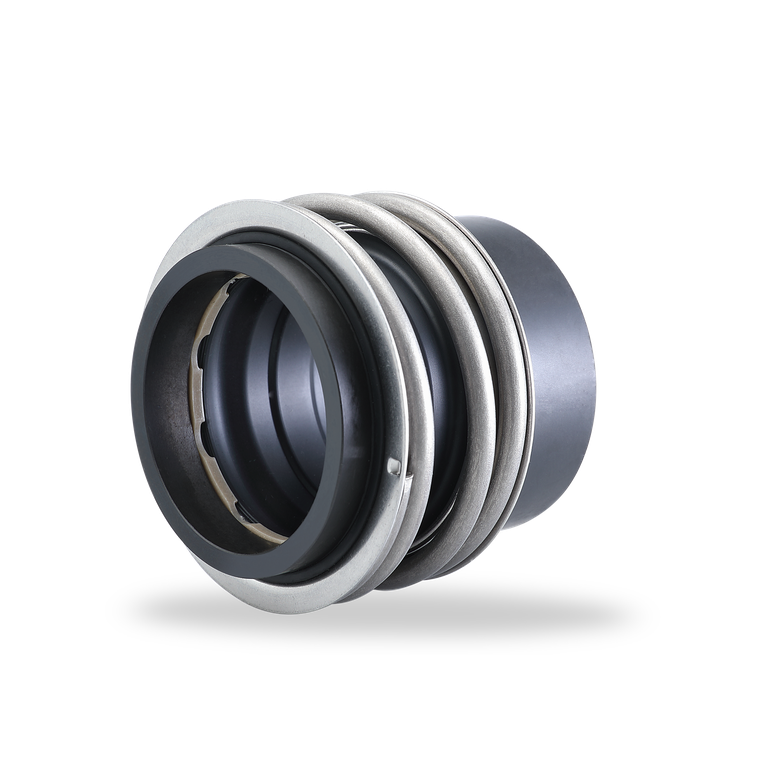

Features
- For plain shafts
- Single and dual seal
- Elastomer bellows rotating
- Balanced
- Independent of direction of rotation
Advantages
- 100 % compatible with MG13
- Small outer diameter of bellows support (dbmin) enables direct retaining ring support, or smaller spacer rings
- Optimal alignment characteristic through self-cleaning of disk/shaft
- Improved centering across entire pressure operating range
- No torsion on bellows
- Shaft protection over entire seal length
- Protection of seal face during installation due to special bellows design
- Insensitive to shaft deflections due to large axial movement ability
- Suitable for low-end sterile applications
Materials
Seal face: Carbon graphite antimony impregnated (A), Carbon graphite resin impregnated (B), Silicon carbide (eSiC-Q7, Q1)
Seat: Silicon carbide (eSic-Q7,Q1)
Elastomer: NBR (P), EPDM (E), FKM (V), HNBR (X4)
Metal parts: CrNiMo steel (G), Hastelloy® (M)
Seat: Silicon carbide (eSic-Q7,Q1)
Elastomer: NBR (P), EPDM (E), FKM (V), HNBR (X4)
Metal parts: CrNiMo steel (G), Hastelloy® (M)
Standards and approvals
Various material approvals available
(depending on type and material combinations).
Please inquire!
(depending on type and material combinations).
Please inquire!
- FDA
- WRAS
- UBA (KTW)
- ACS
- W270
Recommended applications
- Fresh water supply
- Building services engineering
- Waste water technology
- Food technology
- Sugar production
- Pulp and paper industry
- Oil industry
- Petrochemical industry
- Chemical industry
- Water, waste water, slurries
(up to 5 % by weight) - Pulp (up to 4 % otro)
- Latex
- Dairies, beverages
- Sulfide slurries
- Chemicals
- Oils
- Chemical standard pumps
- Helical screw pumps
- Stock pumps
- Circulating pumps
- Submersible pumps
- Water and waste water pumps
Notes
The eMG13 can also be used as a multiple seal in tandem or in a back-to-back arrangement, please inquire.
Other materials and designs available on request.
Product variants
eMG
Dimensions, items and designations same as for eMG13, but with a shortened bellows tail to achieve the fitting length IS. Shortest fitting length.
Dimensions, items and designations same as for eMG13, but with a shortened bellows tail to achieve the fitting length IS. Shortest fitting length.
eMG1
Dimensions, items and designations same as for eMG, but with a shortened bellows tail to achieve the fitting length I.
Dimensions, items and designations same as for eMG, but with a shortened bellows tail to achieve the fitting length I.
eMG12
Dimensions, items and designations same as for eMG13, but with a shortened bellows tail to achieve the fitting length I1k according to EN 12756 in combination with seat G6 or G60 (da exceeds EN 12756).
Dimensions, items and designations same as for eMG13, but with a shortened bellows tail to achieve the fitting length I1k according to EN 12756 in combination with seat G6 or G60 (da exceeds EN 12756).
eRMG13
Identical to eMG13, but with a special bellows surface on the shaft side. For use in hot water pumps. d1 = 14 … 38 mm (0.55" ... 1.50")
Seat G6: Silicon carbide (eSiC-Q7)
A/eSIC-Q7: 120 °C (248 °F) and 25 bar (363 PSI) 140 °C (284 °F) and 16 bar (232 PSI)
B/eSIC-Q7: 120 °C (248 °F) and 18 bar (161 PSI)
eSIC-Q7/eSIC-Q7:
120 °C (248 °F) and 18 bar (161 PSI)
Identical to eMG13, but with a special bellows surface on the shaft side. For use in hot water pumps. d1 = 14 … 38 mm (0.55" ... 1.50")
Seat G6: Silicon carbide (eSiC-Q7)
A/eSIC-Q7: 120 °C (248 °F) and 25 bar (363 PSI) 140 °C (284 °F) and 16 bar (232 PSI)
B/eSIC-Q7: 120 °C (248 °F) and 18 bar (161 PSI)
eSIC-Q7/eSIC-Q7:
120 °C (248 °F) and 18 bar (161 PSI)
Similar products
eMG Blue
- 100% design compatibility with eMG1 and MG1
- For plain shafts
- Elastomer bellows rotating
- Balanced
- Independent of direction of rotation
- Insensitive to shaft deflections due to large axial movement ability
eMG12
- For plain shafts
- Single and dual seal
- Elastomer bellows rotating
- Balanced
- Independent of direction of rotation
NEW! Download STP-Files
Visit our Download Center to download STP-Files of the eMG..!
