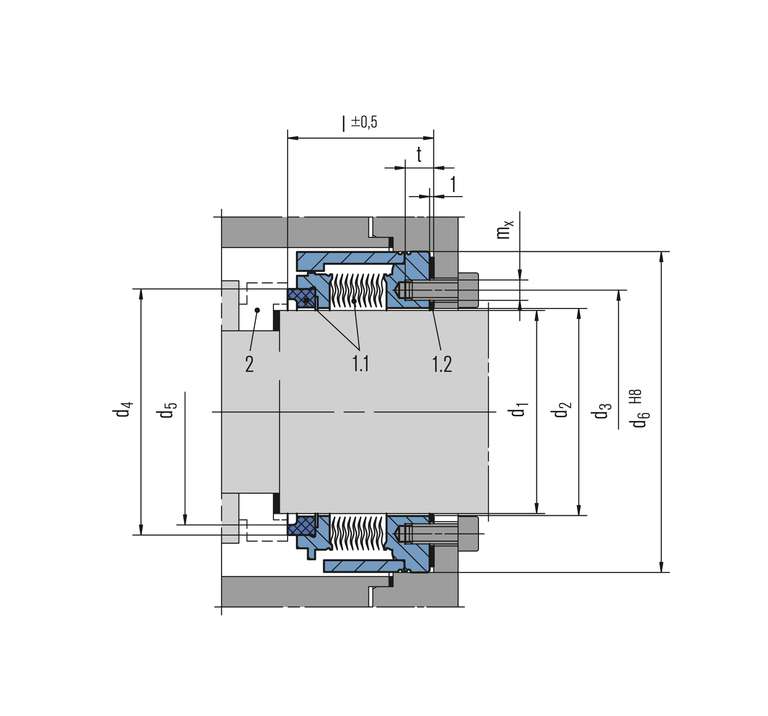

| Item | Part DIN 24250 |
Description |
| 1.1 | 472 and 481 | Seal face and bellows unit |
| 1.2 | 400.1 | Flat gasket |
| 2 | 475 | Seat |

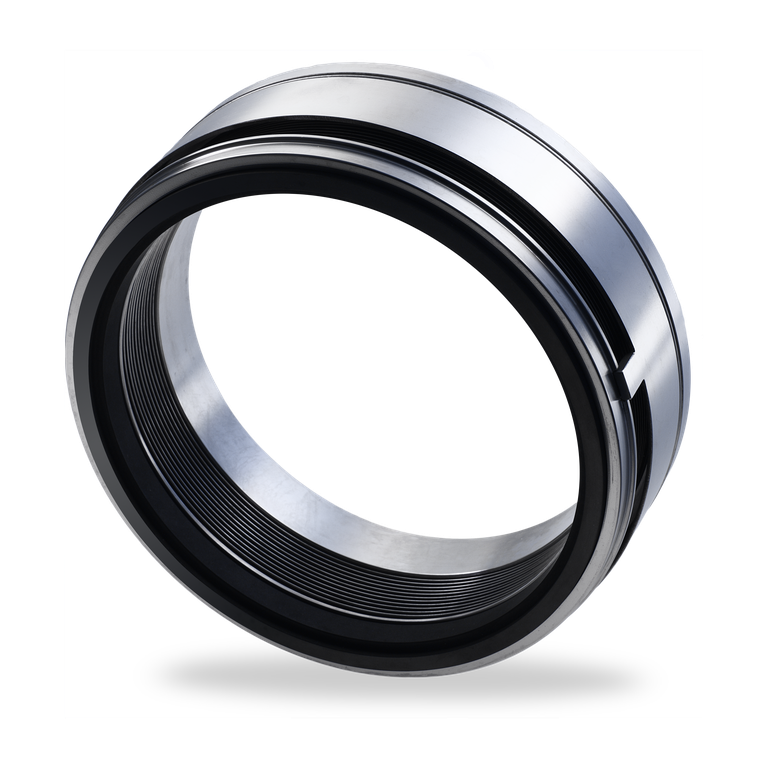

MFL65
Features
- Stationary bellows
- Single Seal
- Balanced
- Independent of direction of rotation
Advantages
- For high temperature
- High sliding velocities
- No elastomer secondary seals
Operating range
Externally pressurized: p1 = 25 bar (363 PSI), (higher pressure possible, please inquire)
Internally pressurized:
p1 <120 °C (248 °F) 10 bar (145 PSI),
p1 <220 °C (428 °F) 5 bar (72 PSI),
p1 <400 °C (752 °F) 3 bar (44 PSI)
Stationary seat lock necessary.
Temperature:
t = -20 °C ... 400 °C (-4 °F ... +752 °F)
Sliding velocity: vg = 50 m/s (165 ft/s)
Materials
Inconel® 718 (M6), Hastelloy® C-276 (M5)
Seal face:
Carbon graphite antimony impregnated (A), Silicon carbide (Q12)
Seat:
Silicon carbide (Q1), Special cast CrMo steel (S)
Metal parts:
Duplex (G1), Carpenter® 42 (T4), Hastelloy® C-4 (M)
Recommended applications
- Process industry
- Oil and gas industry
- Refining technology
- Petrochemical industry
- Chemical industry
- Hot media
- High sliding velocities
- Pumps
- Special rotating equipment
Product variants
Shaft diameter:
d1 = 16 ... 100 mm (0.64" ... 4"),
(>100 mm on request)
Internally pressurized:
p1 = 16 bar (232 PSI),
(higher pressure possible, please inquire)
Externally pressurized:
p1 = 10 bar (145 PSI),
stationary seat lock necessary. Temperature:
t = -20 °C ... +400 °C (-4 °F ... +752 °F) Sliding velocity:
vg = 50 m/s (165 ft/s)
