WEL5

Features

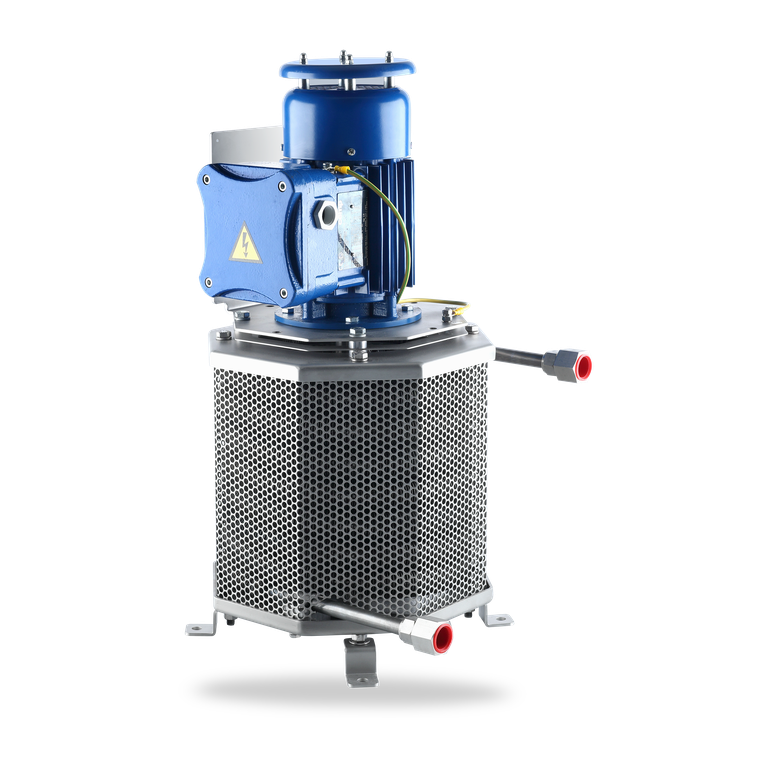

Heat exchangers of the WEL5 range (photo: WEL5200/M001-D0) are used to cool process/barrier fluids in seal supply circuits. The heat exchangers are made of helical finned tubes. The cooling medium is ambient air. It is important, therefore, for WEL5 heat exchangers to be installed in well ventilated places indoors or, ideally, outdoors. The integrated fan blower ensures the necessary cooling air flow. The WEL5 range is provided as a compact packaged unit completely assembled.

Circulation in accordance with API 682 / ISO 21049: Plan 21, Plan 22, Plan 23, Plan 41

Advantages

  • Compact Design
  • Can also be used with non-optimal cooling air exchange
  • Helical finned tube with efficient air circulation
  • High resistance to corrosive fluids due to stainless steel components
  • No cooling water supply and heating of cooling water line required in winter

Standards and approvals

  • Calculation based on ASME VIII, Div. 1



Product variants

Designation WEL5200/M001-D0
Design code ASME VIII, Div. 1
Process connections 3/4" NPT (f)
Allowable pressure 110 bar (1,600 PSI)
Allowable temperature -29 °C … +260 °C (-20 °F … +500 °F)
Cooling performance (kW)1) 2.4
Supply voltage 230 V/400 V / 50Hz
Power consumption 0.25 kW
Type of explosion protection Ex II2G
Ex d IIC T4 Gb
Ingress of protection IP55
Material 316/316L


1) The cooling performance depends on the available fluids, their temperatures and flow rates. Please contact EagleBurgmann for professionally selecting the correct heat exchanger.

Other versions on request.

Similar products

WED5

Heat exchangers of the WED5 range (photo: WED5050/A020-D1) are used to cool process/barrier fluids in seal supply circuits. WED5 heat exchangers are available in 3 standard sizes and are API 682 conform. The process/barrier medium is directed through the tube and the cooling medium through the shell. For simple draining of the cooling water side, the heat exchanger can also be supplied with drainage ball valves. In addition, the heat exchangers can also be combined with a temperature instrument in the supply line to mechanical seal (optional in accordance with API 682).
Circulation in accordance with API 682 / ISO 21049: Plan 21, Plan 22, Plan 23, Plan 41

WEF6 Water cooler

Heat exchangers of the WEF6 range are used to cool process/barrier fluids in seal supply circuits. WEF6 heat exchangers are fully compliant with API 682 4th edition regulations. The process/barrier medium is directed through the tube, and the cooling medium is directed through the shell.
Venting and draining of the process/barrier medium side as well as the cooling water side is ensured. In addition, the heat exchangers can also be combined with a temperature instrument in the supply line to the mechanical seal (optional in accordance with API 682 4th edition).
