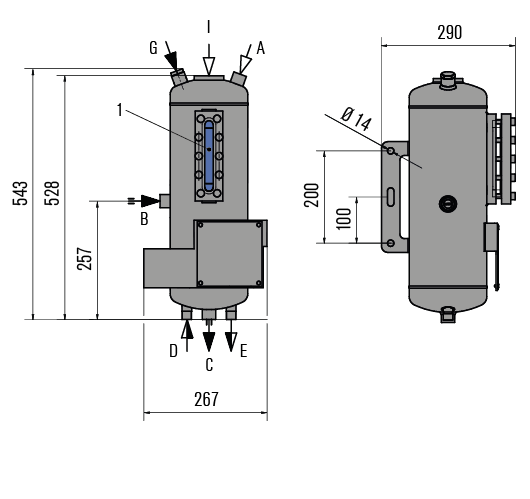

| Item | Description |
| A | N2 Connection / Vent |
| B | From the mechanical seal |
| C | To the mechanical seal |
| D | Cooling water IN |
| E | Cooling water OUT |
| G | Filling connection |
| 1 | Sight class |
TSA2
Features
- Successor of product lines TS2000, TS1020
- For ANSI pumps in chemical applications
- Pressure rating up to 25 bar(g) (362 psi)
- 40 % increased working volume compared to previous version
- Sight glass for level monitoring
- Cooling coil is supplied as standard
- All necessary system connections and brackets are provided as standard for optional components
- Circulation based on API 682 / ISO 21 049: Plan 52, Plan 53A
Advantages
- Improved heat dissipation
- Material of construction 316/316L – 1.4401/1.4404 stainless steel; sight glass made of borosilicate glass
- Modular system design, many pre-configured variants available
- Sleeves with recessed gasket prevent contamination of circuit by thread sealant
- Very short delivery time
- Attractive pricing
Standards and approvals
- ASME VIII, Div. 1 (Design, calculation and production)
- PED 2014/68/EU (optional)
- SELO, TR CU on request
- Compliant to TA Luft (German Clean Air Act)
Recommended applications
- Chemical industry
- Petrochemical industry
- Oil and gas industry
- Refining technology
Functional description
- Pressure-build-up in the seal chamber
- Leakage compensation
- Circulation of the buffer/barrier fluid by thermosiphon effect or forced circulation
- Cooling of the seal
- Selective absorption of product leakage and prevention of dry running (tandem arrangement). When pressurized, this is provided via compressed air or nitrogen.
Technical Data
Vessel volume: 9 liters
Pressure rating (1): max. 25 bar(g) (362 psi); variant with up to 40 bar(g) (580 psi) possible
Temperature rating (1): -60 °C … +200 °C (-76 °F … + 392 °F)
Working volume MAX-MIN: 2,5 liters
Heat dissipation – forced circulation (2): 4.0 kW
Material (wetted parts): stainless steel 316 / 316L - 1.4401 /1.4404
Sight glass: Reflex Borosilicate Glass
Gaskets: PTFE
Net weight (w/o accessories): 15 kg (33 lb.)
1) Design data, permissible working values depend on the operation conditions.
2) Cooling capacity depends on the fluids used, their temperatures and flow rates.

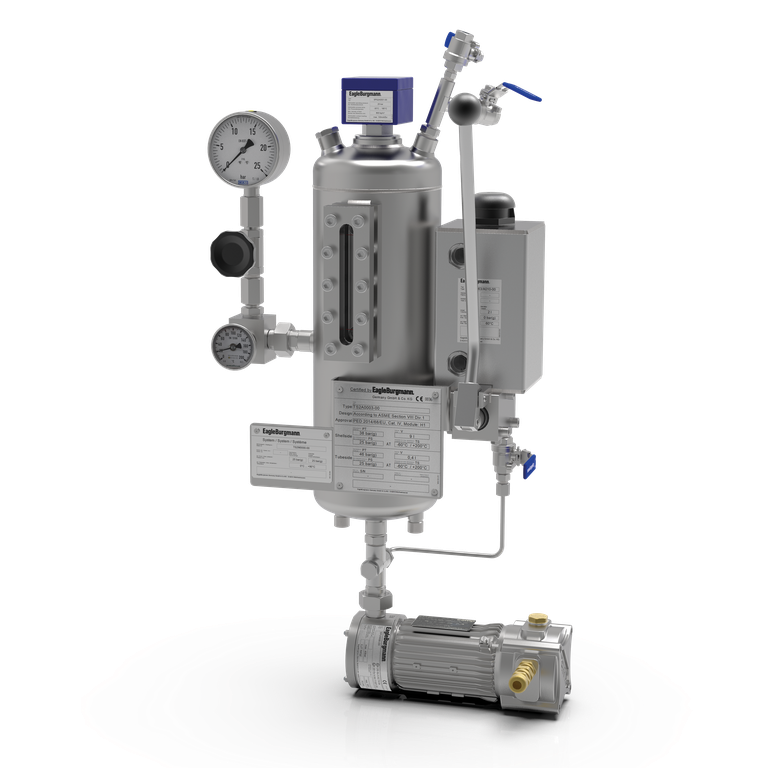

Product variants
Configurable components
For professional selection and configuration of your TSA2 thermosiphon system, please contact our Technical Sales Support experts. |
Similar products
Inquire about individual solutions
We develop and produce customer-specific special and individual solutions for every application.
